PIC16F628A-I/SO

Flash-Based, 8-Bit, CMOS Microcontroller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.00

PartNumber:: PIC16F628A-I/SO

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Aline's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-25

From Other Seller

Part Number:PIC16F628A-I/SO
US $0.80 - 1.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

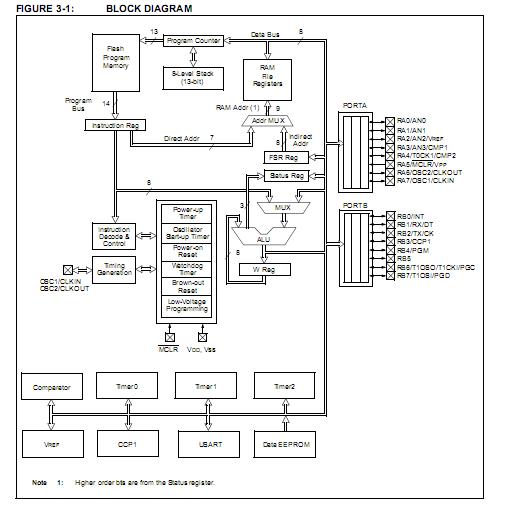

The PIC16F628A-I/SO is a 8-Bit CMOS Microcontrollers with nanoWatt Technology. It has enhanced core features, an eight-level deep stack, and multiple internal and external interrupt sources.

Parametrics

Absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR and RA4 with respect to VSS :-0.3 to +14V; (5)Voltage on all other pins with respect to VSS:-0.3V to VDD+0.3V; (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:300 mA; (8)Maximum current into VDD pin:250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):± 20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin:25 mA; (13)Maximum current sunk by PORTA and PORTB (Combined):200 mA; (14)Maximum current sourced by PORTA and PORTB (Combined):200 mA.

Features

Features: (1)Operating speeds from DC – 20 MHz; (2)Interrupt capability; (3)8-level deep hardware stack; (4)Direct, Indirect and Relative Addressing modes; (5)Power-saving Sleep mode; (6)Programmable weak pull-ups on PORTB; (7)Multiplexed Master Clear/Input-pin; (8)Watchdog Timer with independent oscillator for reliable operation; (9)Low-voltage programming; (10)In-Circuit Serial Programming (via two pins); (11)Programmable code protection; (12)Brown-out Reset; (13)Power-on Reset; (14)Power-up Timer and Oscillator Start-up Timer ; (15)Wide operating voltage range (2.0-5.5V); (16)Industrial and extended temperature range; (17)16 I/O pins with individual direction control; (18)High current sink/source for direct LED drive.
