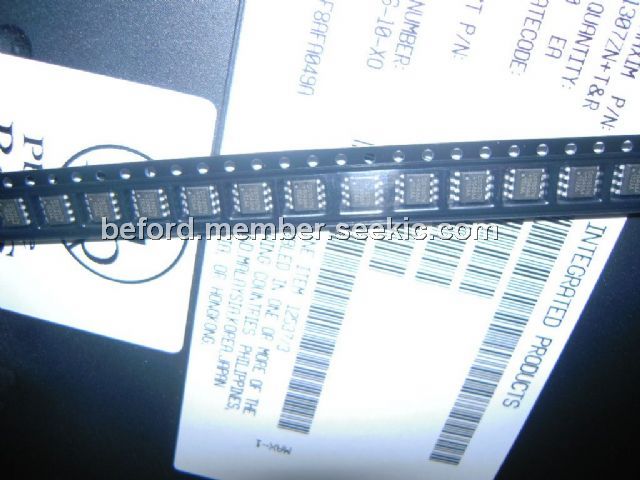

DS1307ZN

5.0V, 8SO, real-time clock

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.50

PartNumber:: DS1307ZN

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Aline's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-25

From Other Seller

Part Number:DS1307ZN
US $0.15 - 0.50
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

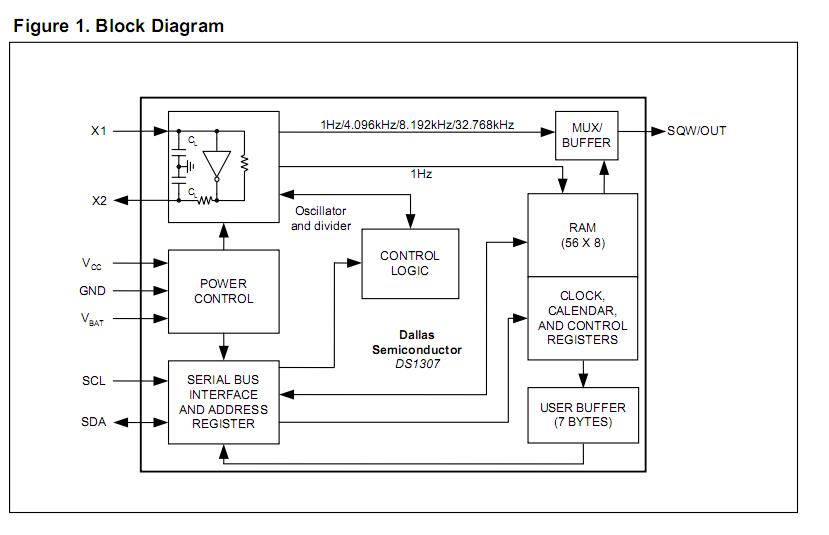

The DS1307ZN is a low-power, full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. It provides seconds, minutes, hours, day, date, month, and year information.

Parametrics

Absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground:-0.5V to +7.0V ; (2)Operating Temperature Range (Noncondensing):Commercial:0℃to +70℃, Industrial:-40℃ to +85℃ ; (3)Storage Temperature Range:-55℃ to +125℃ ; (4)Soldering Temperature (DIP, leads):+260℃ for 10 seconds ; (5)Soldering Temperature (surface mount):See JPC/JEDEC Standard J-STD-020.

Features

Features: (1)Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the week, and Year with Leap-Year Compensation Valid Up to 2100 ; (2)56-Byte, Battery-Backed, Nonvolatile (NV) RAM for Data Storage ; (3)I2C Serial Interface ; (4)Programmable Square-Wave Output Signal ; (5)Automatic Power-Fail Detect and Switch Circuitry ; (6)Consumes Less than 500nA in Battery-Backup Mode with Oscillator Running ; (7)Optional Industrial Temperature Range: -40℃ to +85℃ ; (8)Available in 8-Pin Plastic SO ; (9)Underwriters Laboratory (UL) Recognized.
