Product Summary
The EL1883ISZ-T7 video sync separator is manufactured using Elantecs high performance analog CMOS process. This EL1883ISZ-T7 extracts sync timing information from both standard and non-standard video input and also in the presence of Macrovision pulses. The EL1883ISZ-T7 provides composite sync, vertical sync, burst/back porch timing, and horizontal outputs. Fixed 70mV sync tip slicing provides sync edge detection when the video input level is between 0.5VP-P and 2VP-P (sync tip amplitude 143mV to 572mV). A single external resistor sets all internal timing to adjust for various video standards. The composite sync output of the EL1883ISZ-T7 follows video in sync pulses and a vertical sync pulse is output on the rising edge of the first vertical serration following the vertical pre-equalizing string. For non-standard vertical inputs, a default vertical pulse is output when the vertical signal stays low for longer than the vertical sync default delay time. The horizontal output of the EL1883ISZ-T7 gives horizontal timing with pre/post equalizing pulses.
Parametrics
EL1883ISZ-T7 absolute maximum ratings: (1)Pin Voltages: -0.5V to VCC +0.5V; (2)Operating Ambient Temperature Range: -40℃ to +85℃; (3)Operating Junction Temperature: 150℃; (4)Storage Temperature: -65℃ to +150℃; (5)Power Dissipation: 400mW.
Features
EL1883ISZ-T7 features: (1)NTSC, PAL, SECAM, non-standard video sync separation; (2)Fixed 70mV slicing of video input levels from 0.5VP-P to 2VP-P; (3)Low supply current - 1.5mA typ.; (4)Single 3V to 5V supply; (5)Composite sync output; (6)Vertical output; (7)Horizontal output; (8)Burst/back porch output; (9)Macrovision compatible; (10)Available in 8-pin SO package; (11)Pb-Free plus anneal available (RoHS compliant).

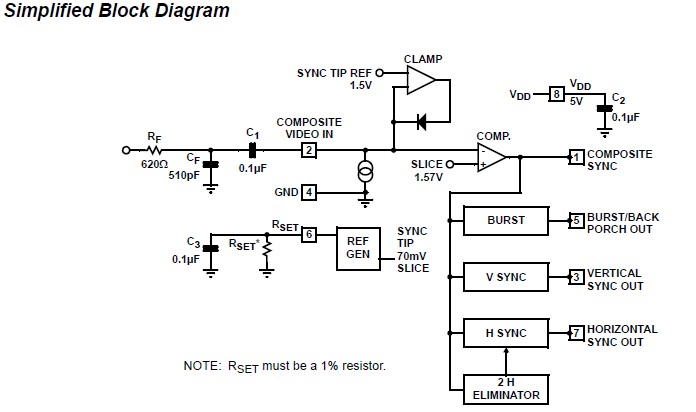

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EL1883ISZ-T7 |
Intersil |
Video ICs EL1883ISZ SYNC SEPERATOR |
Data Sheet |
|
|
||||||||
 |
EL1883ISZ-T7A |
|
IC VID SYNC SEPARATOR HORZ 8SOIC |
Data Sheet |
|
|
||||||||
