Product Summary
The TSH94IDT is a quad low power high frequency op-amp, designed for high quality video signal processing. The TSH94IDT offers an excellent speed consumption ratio with 4.5mA per amplifier for 150MHz bandwidth. High slew rate and low noise also make the TSH94IDT suitable for high quality audio applications. The TSH94IDT offers 2 separate complementary STANDBY functions: STANDBY 1 acting on the n° 2 operator; STANDBY 2 acting on the n° 3 operator. These functions reduce the consumption of the corresponding operator and put the output in a high impedance state.
Parametrics
TSH94IDT absolute maximum ratings: (1)VCC, Supply voltage: 14v; (2)Vid Differential input voltage: ±5 V; (3)Vi Input voltage: -0.3 to 12 V; (4)Toper Operating free-air temperature range: -40 to +125 ℃; (5)Tstg Storage temperature range: -65 to +150 ℃; (6)ESD: CDM: charged device model: 1.5kv; HBM: human body model: 2kv; MM: machine model: 200v.
Features
TSH94IDT features: (1)Two separate standby functions: low consumption and high impedance outputs; (2)Low supply current: 4.5mA; (3)High speed: 150MHz - 110V/μs; (4)Unity gain stability; (5)Low offset voltage: 3mV; (6)Low noise 4.2 nV/√Hz; (7)Low cost; (8)Specified for 600Ω and 150Ω loads; (9)High video performance: Differential gain: 0.03%; Differential phase: 0.07°; Gain flatness: 6MHz, 0.1dB max @ 10dB gain; (10)High audio performance.

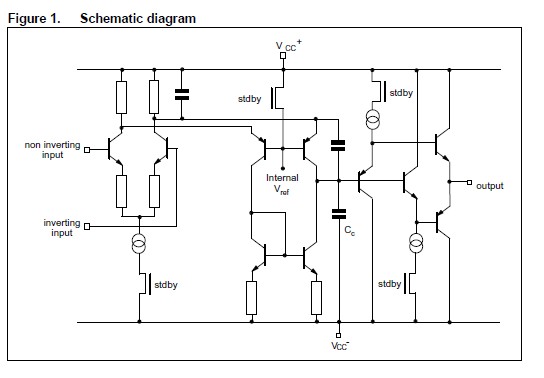

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TSH94IDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Hi-Spd Lo-Power |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
TSH93 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TSH93ID |
STMicroelectronics |
Operational Amplifiers - Op Amps Triple Hi-Spd Lo-Pwr |
Data Sheet |
Negotiable |
|
||||||||||||
|
TSH93IDT |
STMicroelectronics |
Operational Amplifiers - Op Amps Triple Hi-Spd Lo-Pwr |
Data Sheet |
Negotiable |
|
||||||||||||
|
TSH93IN |
STMicroelectronics |
Operational Amplifiers - Op Amps Triple Hi-Spd Lo-Pwr |
Data Sheet |
Negotiable |
|
||||||||||||
|
TSH94 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TSH94ID |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Hi-Spd Lo-Power |
Data Sheet |
|
|
||||||||||||
