Product Summary

The PIC16F688-I/ST is CMOS Microcontroller with nanoWatt Technology. It has a 13-bit program counter capable of addressing a 4K x 14 program memory space.

Parametrics

Absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss:-0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD+0.3V); (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:95 mA; (8)Maximum current into VDD pin:95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):± 20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin :25 mA; (13)Maximum current sunk by PORTA and PORTC (combined):90 mA; (14)Maximum current sourced PORTA and PORTC (combined):90 mA.

Features

Features: (1)Power-Saving Sleep mode; (2)Wide Operating Voltage Range (2.0V-5.5V); (3)Industrial and Extended Temperature Range; (4)Power-on Reset (POR); (5)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (6)Brown-out Reset (BOR) with Software Control Option; (7)Multiplexed Master Clear with Weak Pull-up or Input Only Pin; (8)Programmable Code Protection; (9)Interrupt Capability; (10)8-level Deep Hardware Stack; (11)Direct, Indirect and Relative Addressing modes.

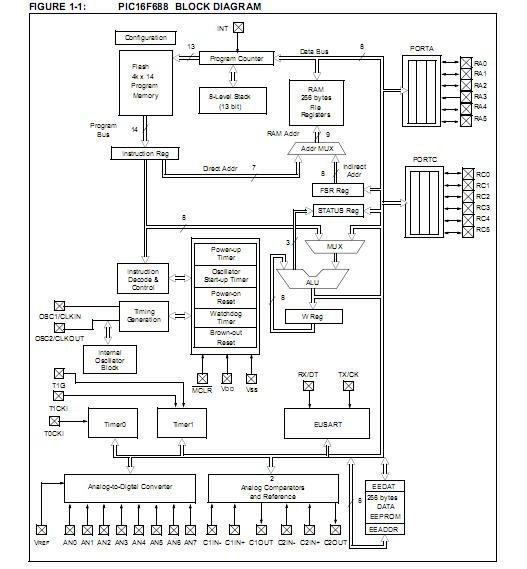

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PIC16F688-I/ST
PIC16F688-I/ST
Microchip Technology
8-bit Microcontrollers (MCU) 7KB 256 RAM 12 I/O
Data Sheet
0-1: $1.07
1-10: $0.86
10-25: $0.84
25-100: $0.82
PIC16F688-I/STG
PIC16F688-I/STG
Microchip Technology
8-bit Microcontrollers (MCU) 7KB 256 RAM 12 I/O Lead Free Package
Data Sheet
Negotiable
