Product Summary

LM358DR is a low power dual operational amplifier. The circuit of the LM358DR consists of two independent, high gain, internally frequency compensated which was designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain of the LM358DR is independent of the magnitude of the power supply voltage.

Parametrics

LM358DR absolute maximum ratings: (1)VCC Supply voltage: +/-16 or 32 V; (2)Vi Input Voltage: -0.3 to +32 V; (3)Vid Differential Input Voltage: +32 V; (4)Ptot Power Dissipation: 500 mW; (5)Output Short-circuit Duration: Infinite; (6)Iin Input Current: 50mA; (7)Toper Opearting Free-air Temperature Range: -40 to +105℃; (8)Tstg Storage Temperature Range: -65 to +150 ℃.

Features

LM358DR features: (1)Internally frequency compensated; (2)Large dc voltage gain: 100dB; (3)Wide bandwidth (unity gain): 1.1MHz (temperature compensated); (4)Very low supply current/op (500μA) essentially independent of supply voltage; (5)Low input bias current: 20nA (temperature compensated); (6)Low input offset voltage: 2mV; (7)Low input offset current: 2nA; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0v to (Vcc - 1.5V).

Diagrams

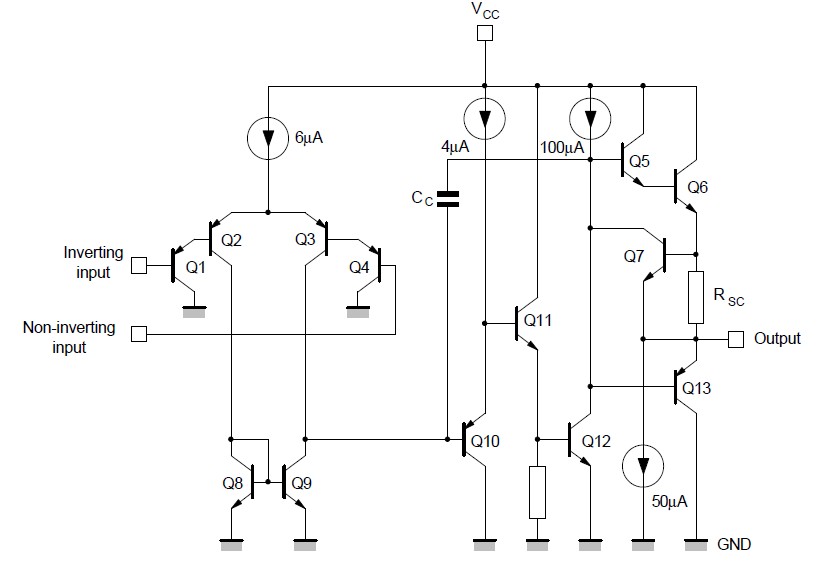

LM358DR logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM358DR
LM358DR
Texas Instruments
Operational Amplifiers - Op Amps Dual Op Amp
Data Sheet
0-1: $0.31
1-25: $0.18
25-100: $0.15
100-250: $0.11
