Product Summary

The G5V-1 conforms to FCC part 68 requirements for coil to contacts. It is used for telecommunications, security, and computer/peripheral equipment.

Parametrics

Absolute maximum ratings: (1)Rated load: 0.50 A at 125 VAC, 1A 24 VDC; (2)Contact material: Ag + Au-Alloy; (3)Carry current: 2 A; (4)Max. operating voltage: 125 VAC, 60 VDC; (5)Max. operating current: 1 A; (6)Max. switching capacity: 62.50 VA, 30W; (7)Min. permissible load: 1 mA, 5 VDC.

Features

Features: (1)High sensitivity: 150 mW nominal power consumption; (2)Small size at 10 H x 7.5 W x 12.5 L mm; (3)Switches from 1 mA to 1 A; (4)Conforms to FCC part 68 requirements for coil to contacts; (5)Fully-sealed construction; (6)Ideal for use in telecommunications, security, and computer/peripheral equipment; (7)RoHS Compliant.

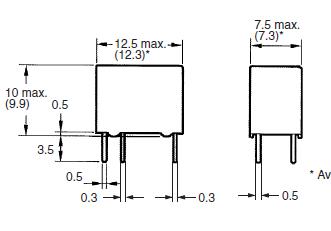

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
G5V-1-2 DC12
G5V-1-2 DC12
Omron Electronics
High Frequency / RF Relays ThruHole 1A SPDT 12DC 150mW Seal
Data Sheet
0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC24
G5V-1-2 DC24
Omron Electronics
High Frequency / RF Relays ThruHole 1A SPDT 24DC 150mW Seal
Data Sheet
0-1: $1.25
1-25: $1.16
25-50: $1.04
50-100: $0.94
G5V-1-2 DC5
G5V-1-2 DC5
Omron Electronics
High Frequency / RF Relays ThruHole 1A SPDT 5DC 150mW Seal
Data Sheet
0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC6
G5V-1-2 DC6
Omron Electronics
High Frequency / RF Relays ThruHole 1A SPDT 6DC 150mW Seal
Data Sheet
0-1: $0.98
1-25: $0.91
25-50: $0.85
50-100: $0.78
G5V-1-2 DC9
G5V-1-2 DC9
Omron Electronics
High Frequency / RF Relays ThruHole 1A SPDT 9DC 150mW Seal
Data Sheet
0-1: $1.07
1-25: $0.99
25-50: $0.92
50-100: $0.85
G5V-1-2-DC3
G5V-1-2-DC3

RELAY GENERAL PURPOSE SPDT 1A 3V
Data Sheet
Negotiable
G5V-13 DC12
G5V-13 DC12

RELAY GEN PURPOSE SPDT 1A 12V
Data Sheet
0-500: $0.88
G5V-13 DC24
G5V-13 DC24

RELAY GEN PURPOSE SPDT 1A 24V
Data Sheet
0-500: $0.88
